| Status | Transitioning |
| Substitute | 62-1747 |

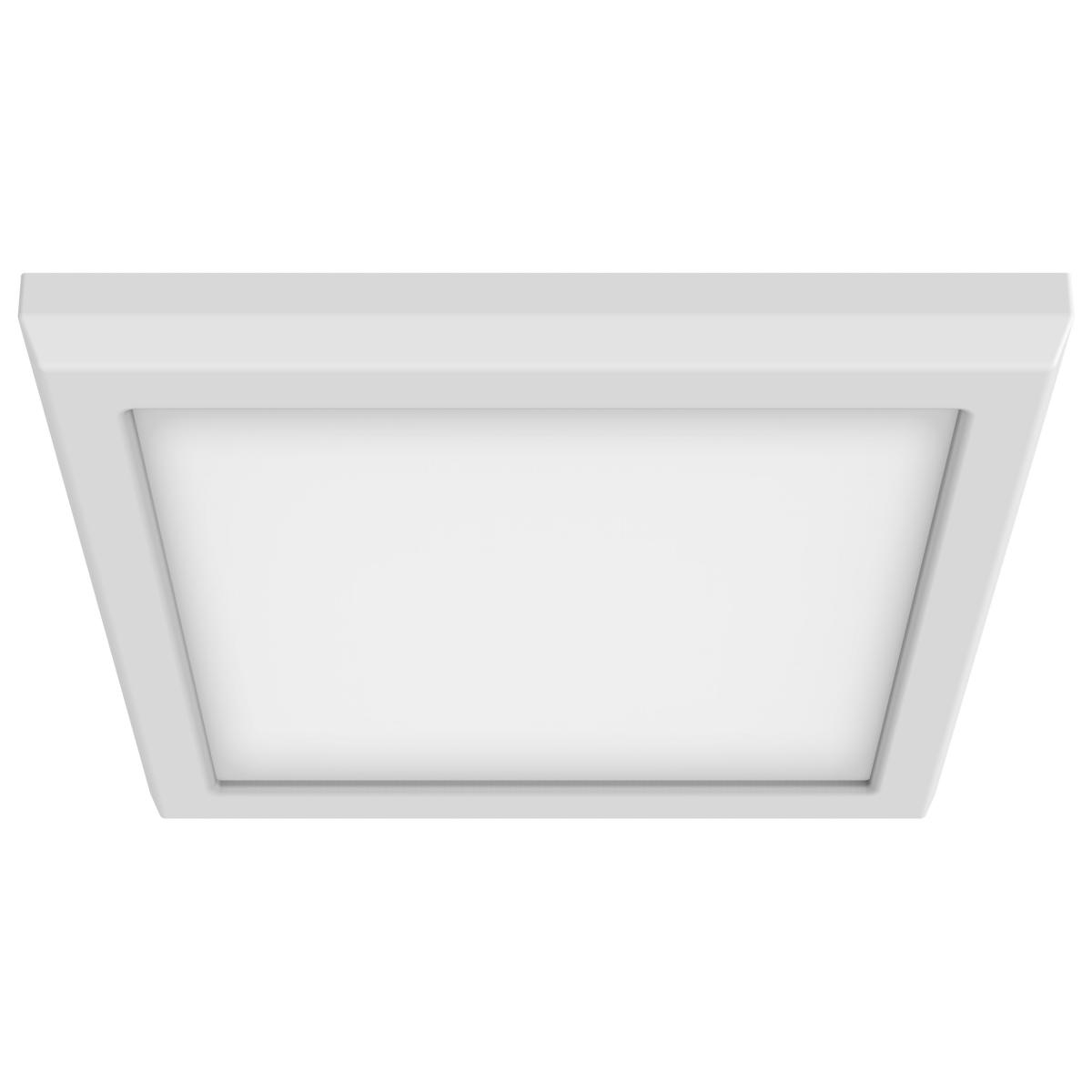

| Fixture Type | Flush Mount |
| Finish | White |
| Wattage | 11W |
| Lumen Output | 940L |
| CCT (Kelvin) | 3000K |
| Indoor or Outdoor Fixture | Indoor |
| IOT Enabled | No |
| Integrated Camera | No |
| Technology | LED |
| Wattage | 11W |
| Lumen Output | 940L |
| CCT (Kelvin) | 3000K |
| Color Temperature | Soft White |
| CRI | 90+ |
| Voltage | 120V/277V |
| Beam Angle | 100 |
| Rated Hours | 50000 |
| Operating Temperature | -20C (-4F) to +40C (+104F) |
| Dimmable | Yes-Dimmable |
| Dimming Note | 0-10V Dimming Only |
| Lens Material | Poly methyl methacrylate (PMMA) |
| Surge Protection | Built-in surge protection - 2.5KV |
| Weight (lb.) | 1.06 |
| Material | Die-Cast Aluminum |
| Height (in.) | 0.67 |
| Width (in.) | 7 |
| Length (in.) | 7 |
| Safety Listing | cETLus - Listed |
| Location Rating | Wet |
| Energy Star | No |
| DLC Approved | No |
| Title 20 / 24 Status | California T24 Listed |
| California Prop 65 | Lead |
| RoHS Compliant | Yes |
| FCC Compliant | Yes |
| Flicker Free | No |
| SDS Sheet | LED Fixture |
| Additional Information | UGR - 26.13; SDCM - 464; Hi pot - DC-1550V; Edge-lit - Yes; at 277 Volts THD <30% |
| Specification Note | Overall height of fixture and driver: 1.50" |
| Installation Notes | Surface mount; Compatible with 3"&4" J-box and pancake J-box with additional accessory |
| Warranty | 3-Years |
| Each UPC | 045923625800 |
| Each Quantity | 1 |
| Each Length (in.) | 7.20 |
| Each Width (in.) | 1.81 |
| Each Height (in.) | 7.20 |
| Each Weight (lb.) | 1.18 |
| Each Cube (CuFt.) | 0.0543 |
| Pack Type | Box |
| Inner Quantity | 0 |
| Inner Length (in.) | 0.00 |
| Inner Width (in.) | 0.00 |
| Inner Height (in.) | 0.00 |
| Inner Weight (lb.) | 0.00 |
| Inner Cube (CuFt.) | 0.0000 |
| Case UPC | 10045923625807 |
| Case Quantity | 12 |
| Case Length (in.) | 14.96 |
| Case Width (in.) | 11.81 |
| Case Height (in.) | 7.87 |
| Case Weight (lb.) | 11.93 |
| Case Cube (CuFt.) | 0.8047 |
