| Status | Active |

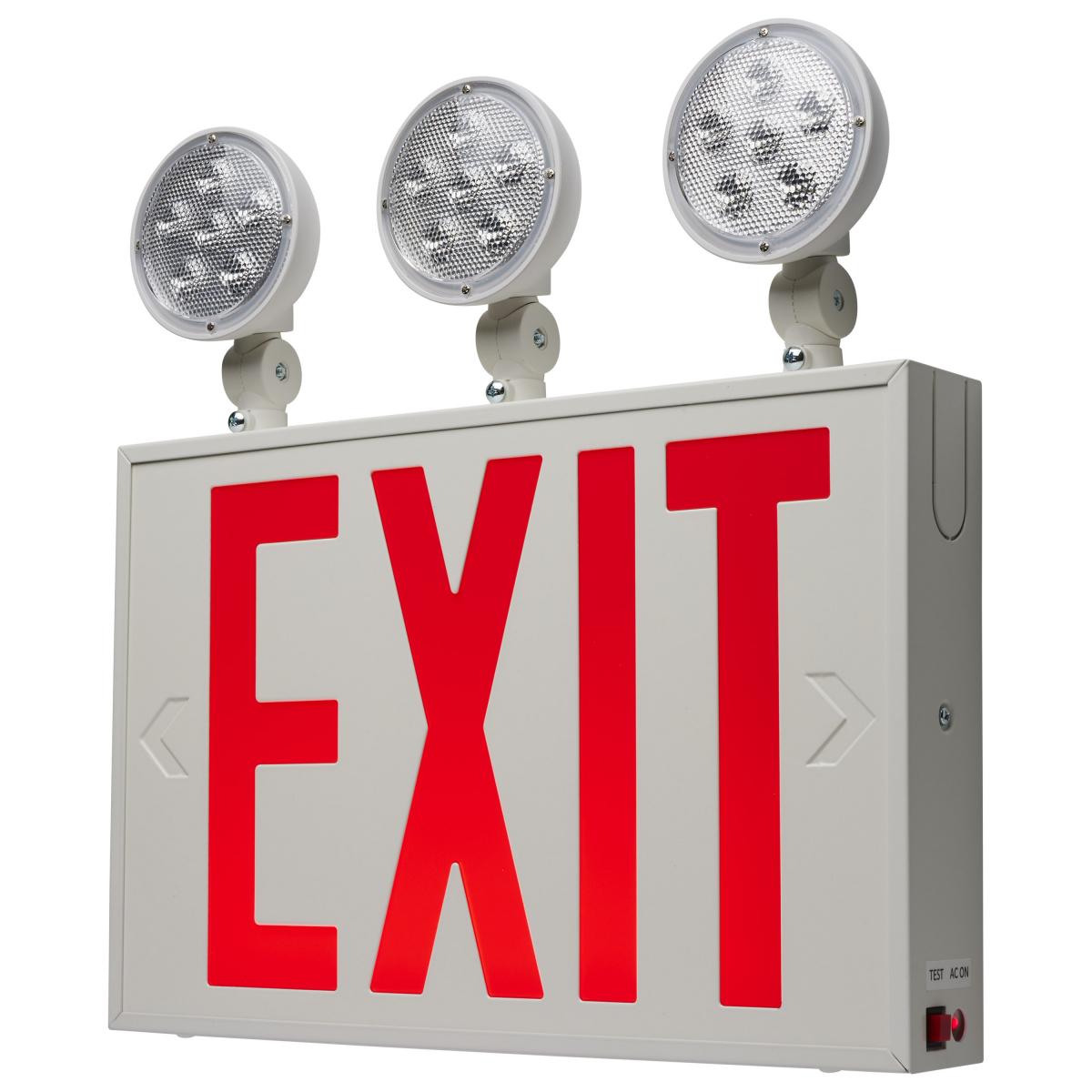

| Fixture Type | Exit Sign |
| Finish | White |
| Wattage | 3W |
| Lumen Output | 330L |
| CCT (Kelvin) | 5700K |
| Indoor or Outdoor Fixture | Indoor |
| Technology | LED |
| Wattage | 3W |
| Lumen Output | 330L |
| CCT (Kelvin) | 5700K |
| CRI | 70+ |
| Voltage | 120V/277V |
| Operating Temperature | +10C (+50F) to +40C (+104F) |
| Dimmable | Non-Dimmable |
| Lens Material | Polycarbonate (PC) |
| Surge Protection | Built-in surge protection - 3KV |
| Weight (lb.) | 6.61 |
| Material | Steel |
| Height (in.) | 14.88 |
| Width (in.) | 14.56 |
| Length (in.) | 2.31 |
| Safety Listing | ULus - Certified; ULus - Listed |
| Location Rating | Damp |
| Energy Star | No |
| DLC Approved | No |
| California Prop 65 | Lead |
| RoHS Compliant | Yes |
| FCC Compliant | No |
| Canadian Standard ICES-005 | Class B |
| SDS Sheet | LED Fixture |
| Additional Information | Input Wattage: 3.0W; Output Wattage: 1.6W; Energy Used in Maintenance Mode: 3.0W |
| Specification Note | 20-gauge Steel, 3.6V AA800mAh Ni-Cad Battery, 90 minutes duration, 24 hour charge time, 10C-40C; Letter Height: 8 in.; Letter Stroke: 1 in.; Path of Egress: 6 Ft. |
| Includes | Mounting hardware and accessories |
| Warranty | 2-Years |
| Each UPC | 045923675782 |
| Each Quantity | 1 |
| Each Length (in.) | 15.79 |
| Each Width (in.) | 15.16 |
| Each Height (in.) | 2.76 |
| Each Weight (lb.) | 7.14 |
| Each Cube (CuFt.) | 0.3823 |
| Pack Type | Box |
| Inner Quantity | 0 |
| Inner Length (in.) | 0.00 |
| Inner Width (in.) | 0.00 |
| Inner Height (in.) | 0.00 |
| Inner Weight (lb.) | 0.00 |
| Inner Cube (CuFt.) | 0.0000 |
| Case UPC | 10045923675789 |
| Case Quantity | 4 |
| Case Length (in.) | 15.75 |
| Case Width (in.) | 16.54 |
| Case Height (in.) | 12.01 |
| Case Weight (lb.) | 29.13 |
| Case Cube (CuFt.) | 1.8106 |
